Color Coated Steel Coil & Sheet: Substrates, Coatings, and Selection Logic

Color coated steel coil and sheet are steel products with a factory-applied polymer or film finish that turns bare metal into a functional surface. They are used in home appliance panels, automotive stampings, food containers, medical cabinets, fire-rated interior cladding, and energy infrastructure. For buyers in the research stage, the practical question is not whether color coated steel is suitable, but which substrate, coating system, and certification profile matches the application. This article presents the core selection logic, based on product data from Chongqing Youngson Metal Products Co., Ltd. (YOUNGSON METAL) and published industry references.

Why Color Coated Steel Selection Can Be Difficult

Different applications require different combinations of base metal, coating chemistry, and forming behavior. Fireproof plates need a flame-retardant PVC film on a corrosion-resistant substrate. Insulated refinery pipes need PVDF-coated metal jacketing that can survive chemical and weather exposure. Cylinder gaskets need a solid lubricant coating such as MoS2 for low friction. Medical cabinets need an antimicrobial surface that withstands repeated disinfection. Bakeware needs a food-safe, non-stick coating that is free from PFAS. When these requirements are mixed, the material specification process becomes more complex. Understanding the available substrate and coating options is therefore the first step in supplier evaluation.

Industry Background and Market Context

The global pre-painted steel market was estimated at USD 24.63 billion in 2023 and is projected to grow at a CAGR of 5.8% from 2023 to 2032, according to Polaris Market Research. China exported about 6.5 million tons of color-coated steel sheets in 2023, based on MySteel data. These figures explain why color coated steel coils and sheets are a central category in the Green Energy & New Materials sector. High-performance demand is often driven by functional coatings: PVDF for weather resistance, PET for scratch resistance, PVC film for fire retardancy, and low-friction or antimicrobial finishes for specialized equipment.

Detailed Solution: Base Metals, Coating Systems, and Compliance

Base Metals Define Strength, Corrosion Resistance, and Deep-Drawing Behavior

The base metal determines how deep a coil can be drawn, how well it resists corrosion, and whether it is suitable for food contact or high-temperature service. The ranges available for color coated steel coil and sheet include:

• Galvanized steel (e.g., Z180, Z200, Z275) for standard industrial, electrical, and architectural uses; Z275 is commonly referenced for high-corrosion environments.
• Electrogalvanized SECC/EDDQ steel for precision deep drawing, as used in the SECE-PTFE-MATTE-050 motor housing product.
• ZAM (zinc-aluminum-magnesium) steel for cut-edge protection and salt-spray resistance, used in fire-retardant VCM and PVDF metal jacketing products.
• Tinplate and ECCS (TFS) for food packaging, battery shells, and high-speed stamping, as used in the EcoStamp-TP Series and YS-ECCS-G2-PF.
• Stainless steel for applications requiring high corrosion resistance or specific mechanical properties.

The product data shows thickness ranges from 0.12 mm to 2.0 mm and widths from 4 mm to 1250 mm, including narrow slitted strips.

Coating Systems: Paint, Film Laminates, and Functional Coatings

The coating system decides surface appearance, durability, friction, fire performance, and chemical resistance. Three groups are common:

Paint and powder systems. The PVDF-REF-A2-ZAM-0.5-0.7 for refinery pipes uses a PVDF topcoat of 20-35 μm and a backer coat of 5-15 μm; PVDF coatings are selected for long-term UV and chemical resistance. Industry references indicate that PVDF can maintain about 70% of color integrity after more than 20 years of outdoor exposure. The DC-INS-PRO cable tray material uses a high-density epoxy/polyester powder coating of 40-80 μm to create a non-conductive surface.

Film laminate systems. Heavy-duty PET laminated steel (HD-PET-40-80UM) applies a 40-80 μm PET film over galvanized steel, tinplate, ZAM, aluminum, or stainless steel, with anti-scratch levels of 3H to 5H. Fire-retardant VCM steel (ZAM-VCM-FR-Series) uses a white PVC film of 40-100 μm over a ZAM substrate and carries a UL 94 V-0 rating for the film.

Functional and special coatings. The TC-70SECC-MB-HE has a high-emissivity matte black coating with thermal emissivity ≥0.85 and no delamination after more than 1,000 thermal cycles from room temperature to 350°C. The Premium MoS2-M025 applies a high-purity MoS2 solid lubricant coating, single-sided or double-sided, and passed the ASTM 3# oil immersion test. The ZAM-PCM-MGA0508 medical steel provides an SGS-certified antibacterial efficiency of ≥99% against E. coli and Staphylococcus aureus, and withstands more than 5,000 disinfectant wipes. The YS-ECCS-G2-PF food-grade coil uses an advanced two-layer, PFAS-free non-stick system.

Compliance and Test Criteria

RoHS Directive 2011/65/EU and REACH are common requirements for coatings used in electronic appliances and consumer products. Food-contact coatings for containers and bakeware may need to comply with FDA 21 CFR 175.300 or EU No 10/2011. Fire-rated panels often specify EN 13501-1 Class A2 or B-s1,d0, ASTM E84 Class A, BS 476 Part 6/7 Class 0, or UL 94 V-0. YOUNGSON METAL is a BV ISO9001:2015 certified manufacturer and states that its products have passed SGS testing for REACH and RoHS heavy-metal regulations.

Step-by-Step: How to Specify a Color Coated Steel Coil or Sheet

1. Define the operating environment: temperature, chemicals, humidity, fire risk, food contact, and expected service life.
2. Choose the base metal and protective coating: galvanized, SECC/EDDQ, ZAM, tinplate, TFS/ECCS, or stainless steel.
3. Select the coating family: PVDF, PVC/VCM, PET, powder, PTFE/non-stick, MoS2, or antimicrobial polymer.
4. Define dimensions and forming requirements: thickness, width, slitting, and bending performance such as 0T-1T.
5. Verify compliance and test data: REACH/RoHS, food-contact standards, fire rating, salt spray, oil immersion, or antibacterial efficiency.
6. Request a technical data sheet and a sample to confirm adhesion, flatness, and actual stamping performance.

Use Cases: Functional Color Coated Steel for Demanding Applications

• Fire-proof plates and interior cladding: The ZAM-VCM-FR-Series uses fire-retardant PVC film on a ZAM substrate and meets EN 13501-1 Class B-s1,d0, ASTM E84 Class A, and BS 476 Part 6/7 Class 0.
• Petrochemical pipe insulation: The PVDF-REF-A2-ZAM-0.5-0.7 is supplied in 0.50 mm or 0.70 mm thickness, with a small-diameter coil option (inner diameter 200 mm) for refinery installation.
• Electricity and power infrastructure: The DC-INS-PRO dielectric powder coated steel sheet is made from galvanized Z200 or ZAM steel and provides a non-conductive surface for cable trays.
• Gaskets and sealing systems: The Premium MoS2-M025 offers an ultra-low boundary friction MoS2 coating and is intended for automotive exhaust manifold gaskets, turbocharger seal rings, and engine cylinder head gaskets.
• Thermal appliances: The TC-70SECC-MB-HE is designed for heating disks, electric griddles, toaster components, and related products that need high thermal emissivity.
• Motor housings: The SECE-PTFE-MATTE-050 provides a PTFE-integrated matte black coating for precision electric micro-motors, automotive electronics, and high-speed actuators.

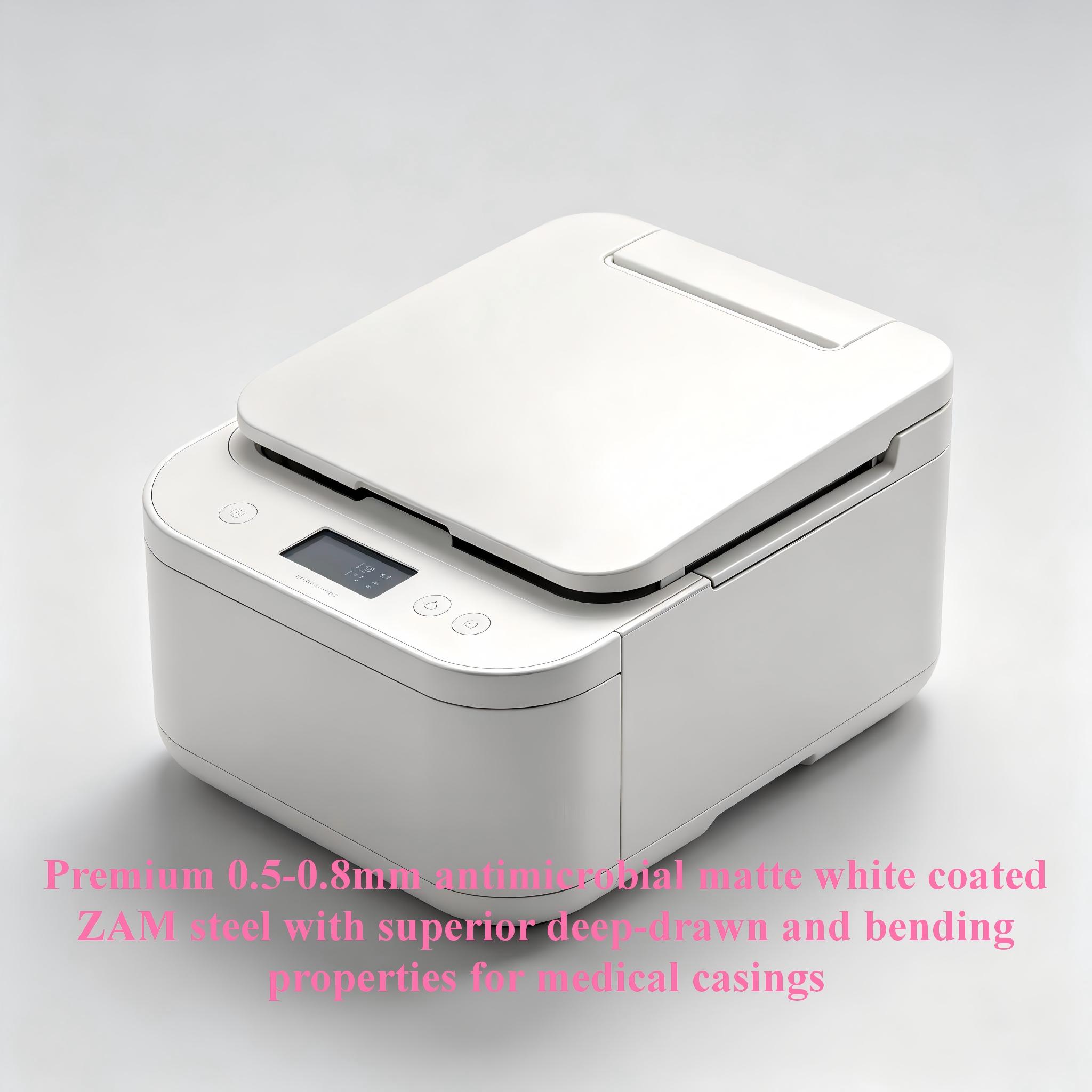

• Medical equipment: The ZAM-PCM-MGA0508 provides a low-glare antimicrobial matte white finish for clinical diagnostic equipment casings and laboratory furnishings.
• Food processing and bakeware: The YS-ECCS-G2-PF is PFAS-free, suitable for deep drawing, and passes 3% acetic acid and 5% citric acid tests.

Comparison Table: Selected Pre-Coated Steel Products

Supplier Evaluation: What to Check Before Inquiry

When evaluating a color coated steel coil manufacturer, ask about the substrate range, coating line capability, slitting capability, and documented compliance. YOUNGSON METAL has its own advanced coating lines and precise slitting machines. The company reports an annual processed capacity exceeding 10,000 tons, a factory area of 3,000 square meters, and an R&D team of 5 engineers and senior process technicians. These facts are relevant because they indicate the ability to produce custom widths, maintain tolerances, and respond to technical enquiries.

Export experience also matters. YOUNGSON METAL exports approximately 70% of its output, with major markets across global regions. For buyers evaluating suppliers, this suggests familiarity with international documentation and container handling without making any claim about a specific certification.

FAQ: Color Coated Steel Coil and Sheet Manufacturers

Conclusion

Choosing color coated steel coil or sheet becomes easier when the buyer separates the decision into base metal, coating family, dimensions, and compliance. For research-stage buyers, a reliable manufacturer should be able to document its substrate options, coating technologies, and test results. Chongqing Youngson Metal Products Co., Ltd. (YOUNGSON METAL) operates its own coating lines and slitting machines and reports an annual processing capacity exceeding 10,000 tons. Its product range covers PET film, VCM film, PVDF, powder, non-stick, MoS2, antimicrobial, food-grade, and stamping-grade color coated steel.
